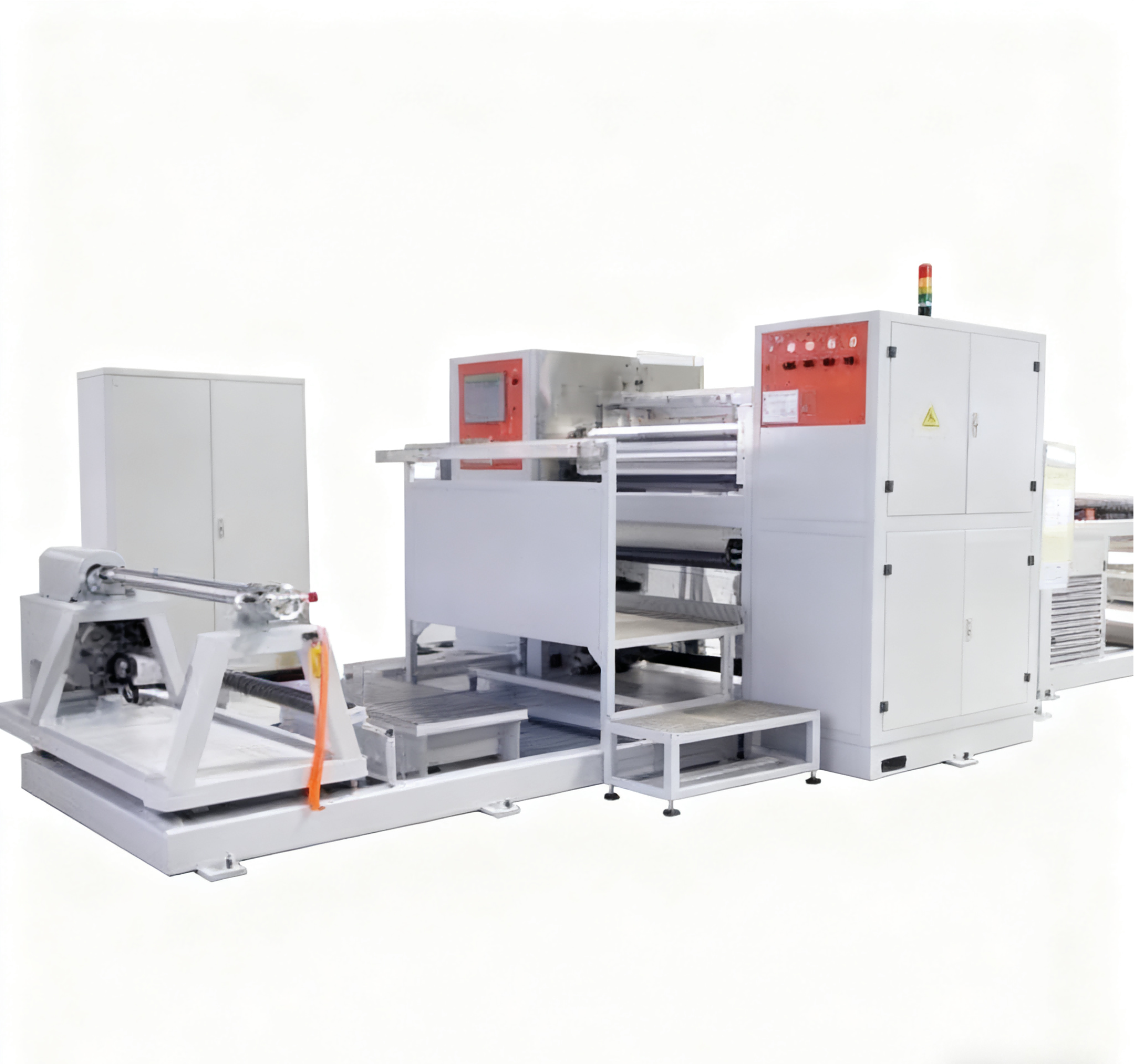

Glue Spreader
The Gluing Spreader is for the hot-melt resin (epoxy, bismaleimide, cyanate ester) gluing step in single carbon/glass fiber prepregs (two-step hot-melt) and woven carbon/glass fiber prepregs production. It precisely coats resin/adhesives for uniform fiber/substrate wetting.Suitable for prepreg preparation and lamination, it boosts composite bonding strength and product quality. It meets high production standards for aerospace, automotive, new energy and electronic equipment industries.
▌ Technical Parameters
| Item | Parameters |
| Coating Width | 1010mm (Customizable) |
| Coating Speed | 1–28m/min (Stepless Speed Regulation) |
| Coating Resin Type | Hot-Melt Epoxy Resin |
| Glue Roller Gap | CNC Driven, Micrometer Detection, Control Precision 0.001mm |
| Power Rating | 15KW |
| Voltage | 380V |
▌Core Features
Uniform Coating: Precise glue amount control ensures uniform coating and prevents glue dripping or missing.
Efficient Operation: Automated operation improves gluing speed, suitable for mass production needs.
Strong Adaptability: Compatible with various glue types (e.g., epoxy resin, PU, etc.) and different substrates (e.g., carbon fiber, glass fiber, etc.).
Flexible Adjustment: Gluing thickness and width are adjustable to meet different process requirements.
Stable and Durable: Robust structure and stable operation, suitable for long-term continuous work.
Easy Maintenance & Cleaning: Modular design facilitates daily maintenance and glue path cleaning.
