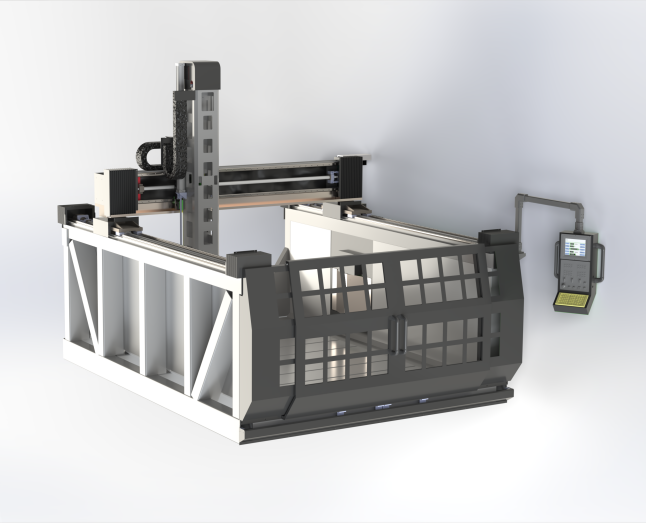

Engraving Machine
▌Technical Parameters
|
Item |
Parameters |
| Working Area |
600 × 900 mm |
| Spindle Power |
1.5-3 kW |
|
Positioning Accuracy / Repeatability |
0.01 / 0.008 mm |
|
Spindle Speed |
≤ 24,000 rpm |
| Control Method |
Sino-English LCD Touch Screen, Siemens PLC, Wireless Handwheel |
| Tool Magazine Capacity |
6 Tools |
| Tool Change Method | Manual + Automatic |
| Voltage | 380 V ± 10% |
| Maximum Engraving Speed | 8 m/min |
▌Performance Characteristics
High-precision positioning: Equipped with servo drives and precision guide rails, it minimizes engraving errors and accurately reproduces fine details.
Multi-material compatibility: Compatible with various materials like wood, metal, acrylic, and stone, it has a wide range of applications.
Multi-process integration: Integrating functions such as engraving, cutting, hollowing, and relief carving into one unit, it serves multiple purposes and reduces processing steps.
Intelligent operation: It supports the import of mainstream design files, features break-point resuming engraving, and is easy to get started with.
Stable and durable: With a high-rigidity frame and high-power spindle, it can operate continuously for long periods and is suitable for batch processing.
