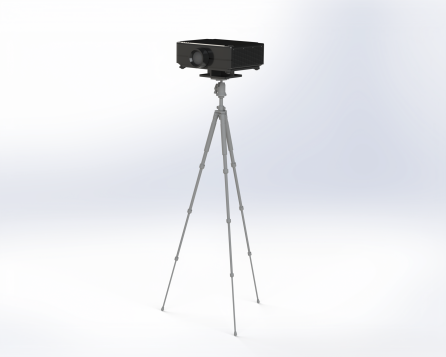

Laser Projector
It is an auxiliary device for high-precision positioning and contour guidance. It achieves accurate projection of complex contours through laser beams and provides intuitive visual references. It can meet the positioning needs of complex components in composite material production, effectively reducing manual alignment errors, improving layup consistency and processing efficiency. It is widely used in automotive assembly, auxiliary laying of UAV structural parts, and mold inspection.
▌Technical Parameters
|
Project |
Parameters |
| Dimensions |
580 × 185 × 170 mm (L × W × H) |
| Weight | 9.5 kg |
| Working Distance | 1.3 - 8 m |
| Projection Accuracy | Up to 1 mm |
| Maximum Projection Angle | 45° × 45° - 60° × 60° |
| Beam Focusing | Manual / Auto Focus |
| Voltage | 220 V |
| Interface | USB 3.0 or Ethernet |
| Laser Wavelength | 520 nm |
| IP Rating | IP50 |
| Supported Data Types | IGES, STP, DXF, DWG; Compatible with FiberSIM, CATIA CPD (Custom formats supported) |
▌Performance Characteristics
High brightness & light resistance: Stable laser source, clear images in bright light, no strict shading required
Wide color gamut & high color accuracy: Pure spectrum, broad gamut, true color reproduction.
Long lifespan & low maintenance: Light source life up to tens of thousands of hours, lower replacement and operation costs.
Low power consumption & stability: Low energy use, slow brightness decay during long-term operation.
Flexible installation: Good throw ratio adaptability, short-throw support, large images achievable in small spaces.
