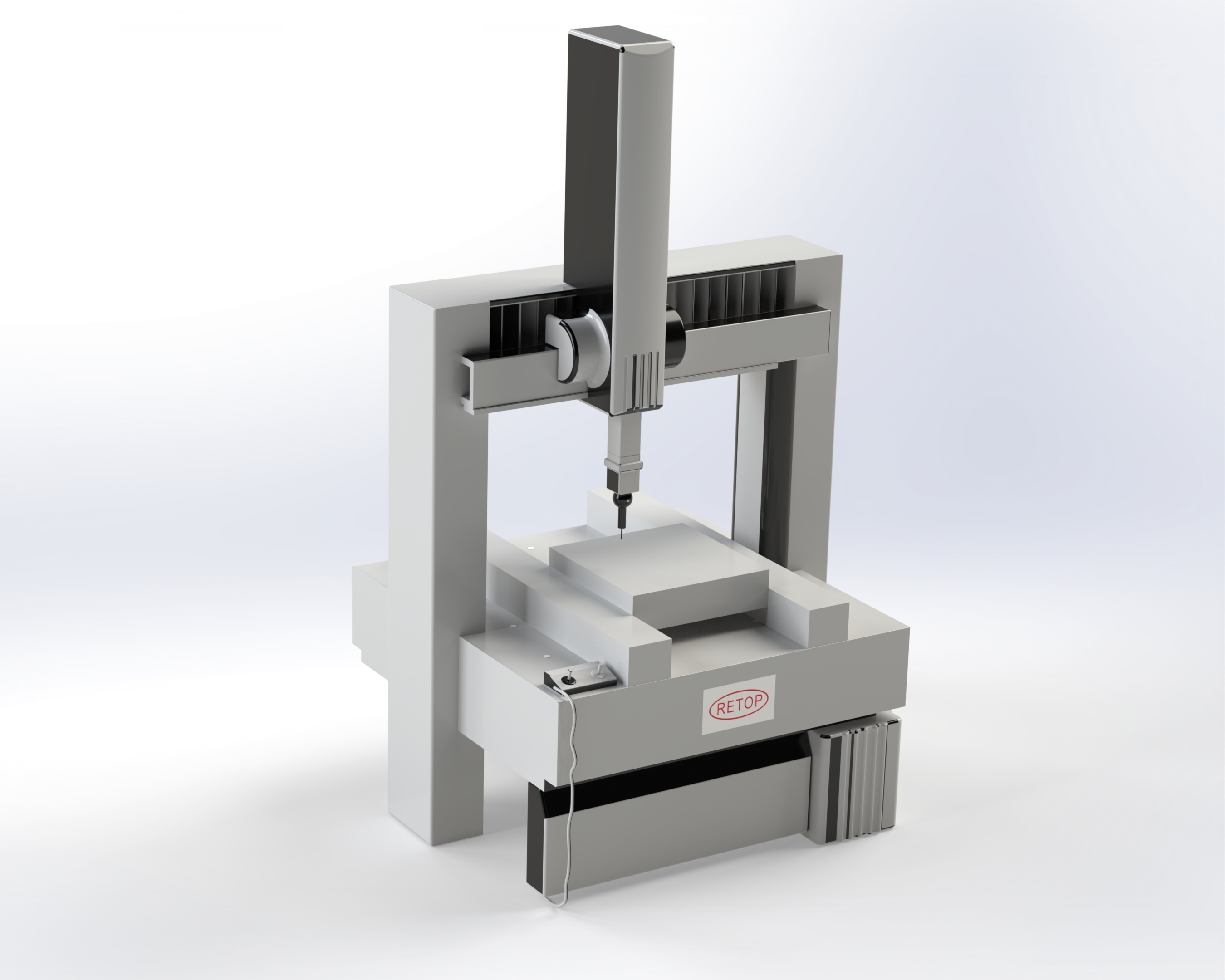

Coordinate Measuring Machine
▌Technical Parameters
|
Item |
Parameters |
| Main Unit Dimensions | 1285×1505×2470 mm / 1185×1305×2270 mm |
| Max Workpiece Dimensions |
500×700×500 mm / 400×500×400 mm |
| Grating Scale | One end fixed, one end free expansion |
| Max 3D Speed | 500 mm/s |
| Max 3D Acceleration | 800 mm/s² |
| Temperature Sensor | Workpiece sensor |
| Max Workpiece Weight | 500 kg |
| Repeatability | 1.5 / 1.0 |
| Indication Error MPEE (µm) 18°C-22°C | 3 + 3L/1000 |
| Indication Error MPEE (µm) 16°C-26°C | 3 + L/250 |
| Indication Error MPEE (µm) 15°C-30°C | 3 + L/200 |
▌Core Features
High precision: accurately measures geometric dimensions and geometric tolerances;
Wide range: diverse machine models, suitable for measuring micro-parts to large components;
High automation: automatic probe + programming software, efficiency over 50% higher than manual measurement, reducing manual errors;
Strong compatibility: supports contact/non-contact measurement, suitable for multiple materials, complex features and industries;
Intelligent processing: professional software enables real-time analysis and report generation, compatible with CAD and production systems;
Stability and durability: high-rigidity machine body resists interference, easy maintenance, MTBF reaches tens of thousands of hours.
