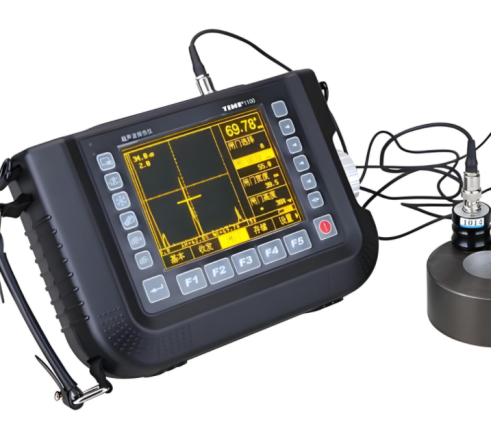

Ultrasonic Flaw Detector
▌Technical Parameters
|
Item |
Parameters |
| Scanning Range |
0-10000 mm |
| Pulse Displacement | -20 to +3400 (s) |
| -20 to +3400 (s) | 1000-15000 m/s |
| Frequency Range | Broadband 0.4-20 MHz |
| Flaw Detection Channels | 500 channels |
| Pulse Repetition Frequency | 100-1000 Hz |
| Sound Velocity Range | 100-20000 m/s |
▌Core Features
High-pressure and high-temperature uniform curing: Provides a stable pressure and temperature environment to ensure full curing of composite materials and excellent performance.
Non-destructive testing: Non-intrusive testing that does not damage the structure and performance of workpieces.
Diversified technologies: Integrates multiple technologies such as ultrasonic and radiographic, suitable for different materials and defect types.
High sensitivity: Accurately identifies micron-level defects to meet the needs of precision testing.
Traceable results: Presents data in a visualized way and supports storage and traceability.Strong adaptability: Suitable for simple and complex special-shaped components with high scenario compatibility.
