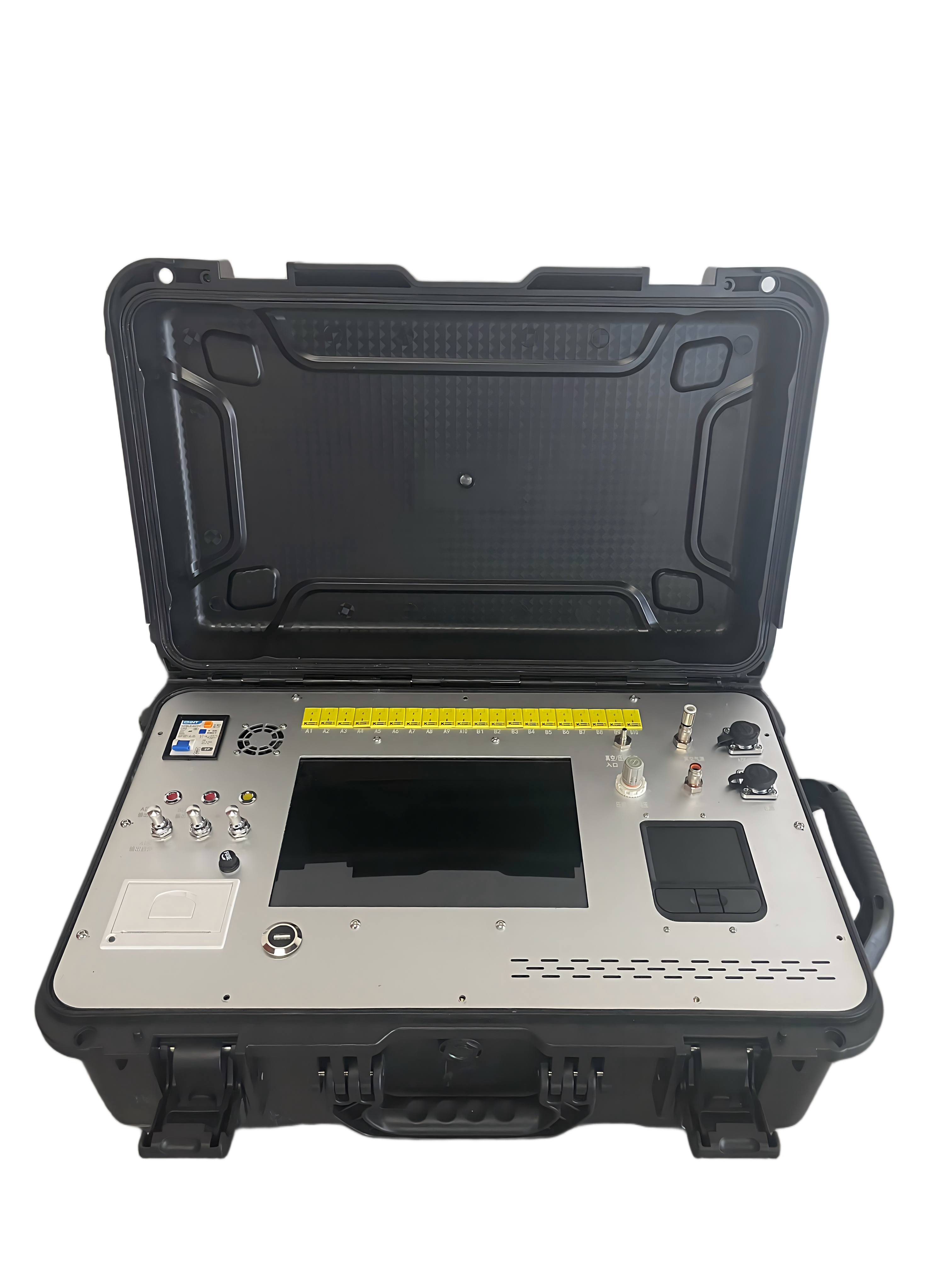

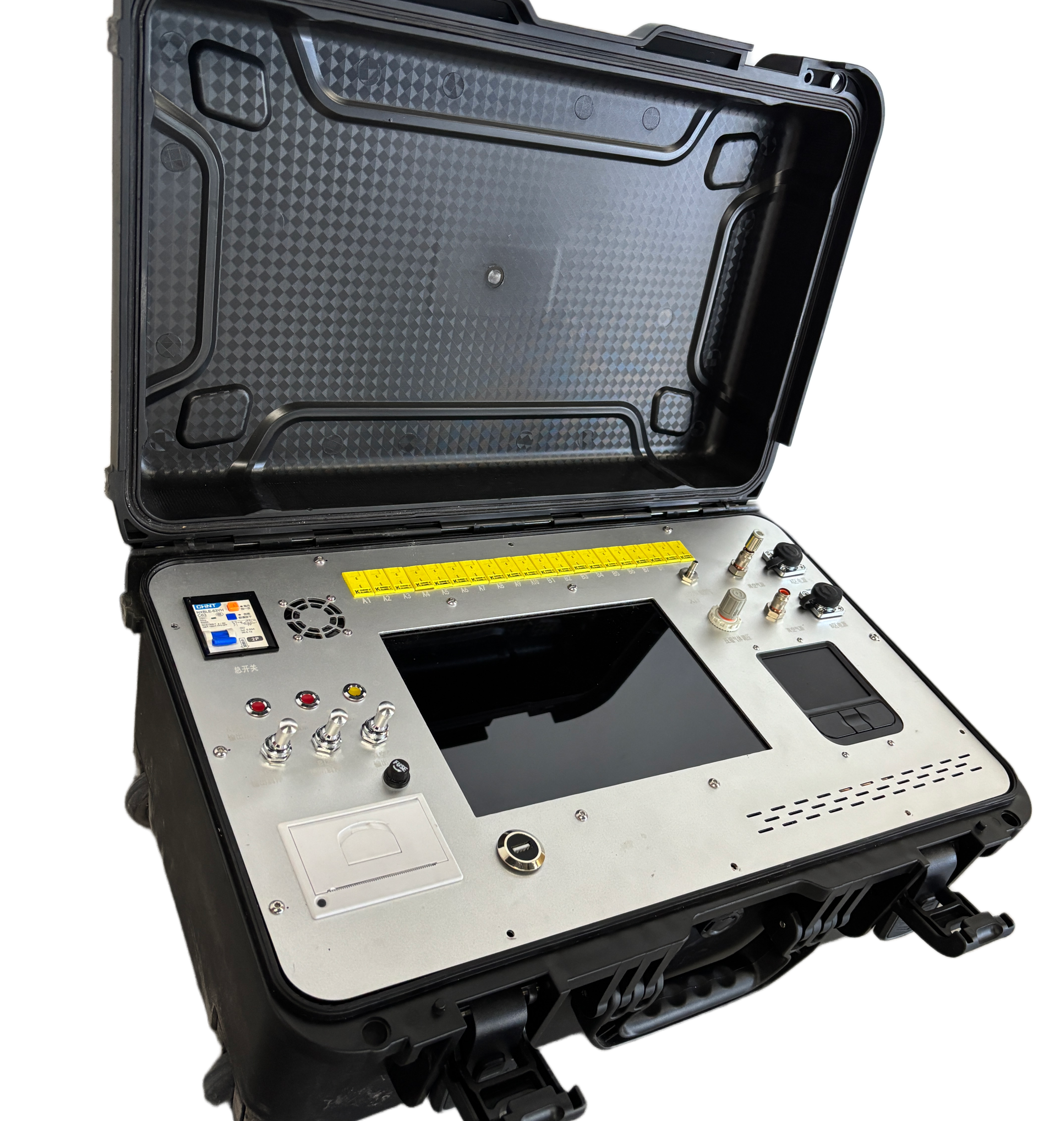

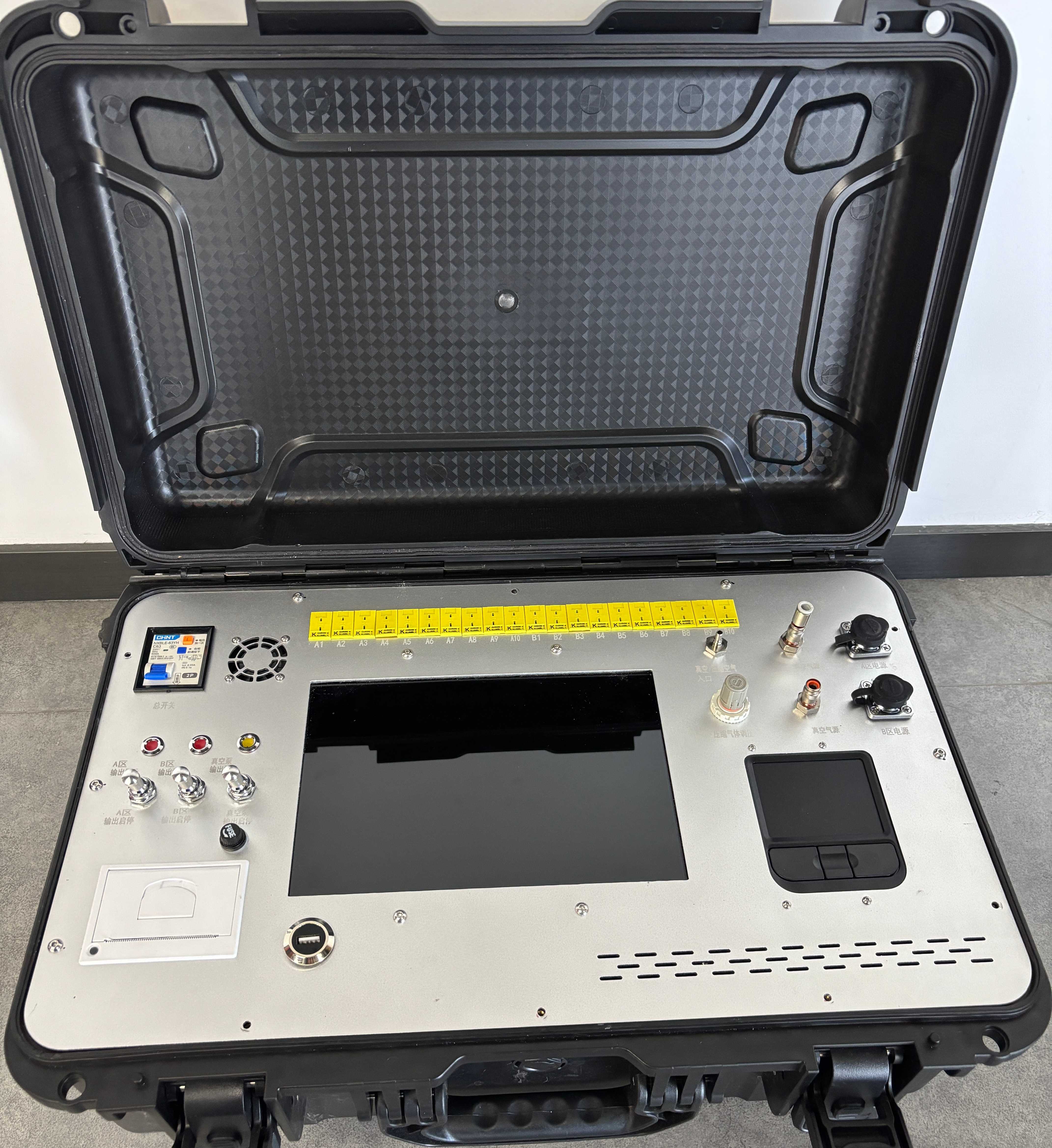

Aviation Thermal Repair Instrument
The RTP-6302 is a dual-zone thermal repair instrument with two identical systems, each offering temperature measurement/control and vacuum monitoring.
Each zone supports a maximum current of 32A; when Zone B is set to slave mode, the system provides a total drive capacity of 63A.
The RTP-6302 is a dual-zone model with 32A power supply per zone.
▌Technical Parameters
|
Item |
Parameters |
| Weight |
17KG |
| Dimensions |
570 × 370 × 220 mm |
|
Storage Temperature |
-20°C ~ 60°C |
| Operating Temperature | 5.5-100~240V AC, 50~60 Hz, max. 32A/zone |
| Humidity | 0~90% RH (non-condensing) |
| Power Input | 110-250 VAC |
| Air Supply Interface | -10°C ~ 50°C |
| Vacuum Interface | 1 per zone, Rilsan 8/10 mm, 0~840 mBar |
| Thermocouple Interfaces | 20000 mm/min |
▌Performance Characteristics
Dual-Zone Independent Control: Supports dual-channel synchronous curing for doubled efficiency;
Flexible Power Drive: 32A per zone / 63A in slave mode, adaptable to multiple working conditions;
Multi-Point Precision Temperature Control: 20 thermocouple channels for full-coverage temperature monitoring;
Stable Vacuum Monitoring: Independent vacuum interface per zone for controlled curing quality;
Wide Voltage Compatibility: 110-250VAC input, globally compatible;
Compact & Portable Design: 17kg lightweight body for convenient on-site maintenance.
▌Applicable Materials

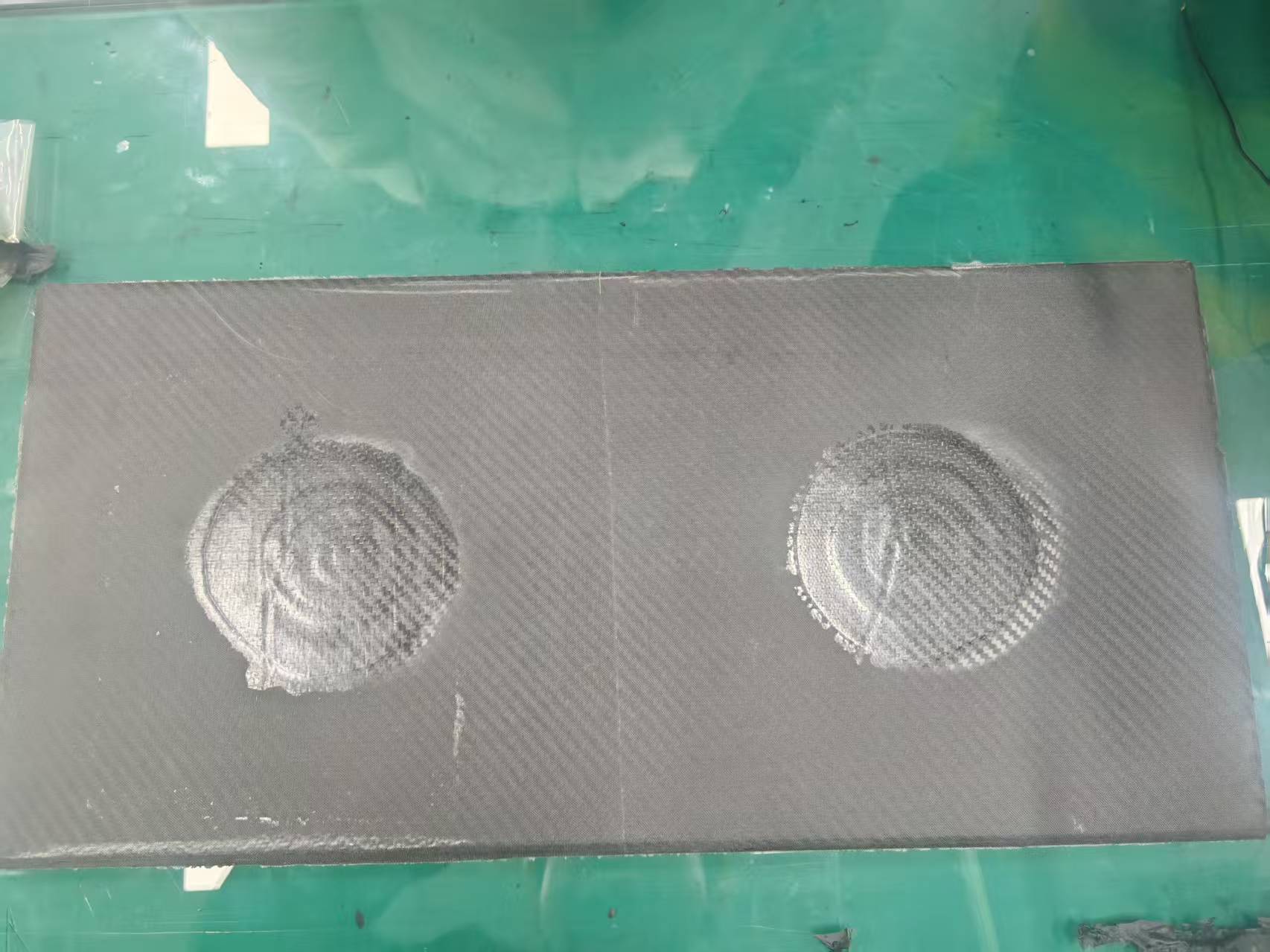

It is primarily used for the repair and curing of resin-based composite materials, specifically including:
Carbon Fiber Reinforced Polymer (CFRP)
Glass Fiber Reinforced Polymer (GFRP)
Aramid fiber composites (e.g., Kevlar)
Composite honeycomb sandwich structures
Various prepregs, structural adhesive films, and resin systems (e.g., epoxy, bismaleimide resin)
Adhesive repair of some metal structures (via composite patch repair technology)
▌Application Fields
It is widely used in aerospace (core field), wind power industry, rail transportation, automotive industry, shipbuilding & offshore engineering, sports equipment and high-end equipment sectors.
